Universal NAND gate and its application in level monitoring in chemical plant
Problem statement:The supervisor of the manufacturing process prefers to have a RED LED to turn ON when either tank A(input button1) or tank B (input button 2) or both tank levels drop below ¼ full-level.
What modification would be required in the external circuit (limiting resistor & RED LED) connected to the output of NAND gate?
If external connections are done according to the solution of Q.1; then we refer to the IC as _____________ current.
The output of NAND gate is LOW __________
Which of the following gate can replace the NAND gate?

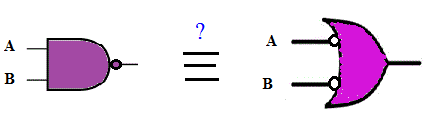

The following logic gates equivalent to each other.
