DIY - Build your own combinational logic circuit using generalized simulator
Solve the following assignments and discuss the results in your peer groups & with your Faculty: Construct the circuits using generalized simulator and verify the results.
c. Simulate and verify the truth table.
b. Verify the function table of the Full adder.
b. When B = 1, output X will follow input A, and output Y will be 0.|
Assignment #4 . Draw the circuit for application quoted in Assignment #3 using NAND gates only. Simulate and Verify the function of the logic circuit.
a. Consider A1 A0 as a two-bit binary number and B1 B0 another two-bit binary number. A's and B's can take values 00, 01, 10, 11.
b. Simulate the same using two-input gates and verify its functionality.
c. Implement the expression obtained in 'a' using two-input NOR gates only. Verify the simulation results.
d. Using generalized Simulator, Simulate and Verify its truth table.

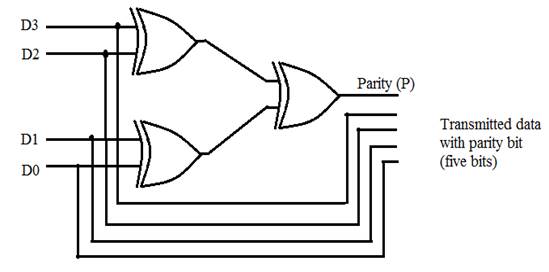

i) 0110 ii)1110 iii) 0000 iv) 0101

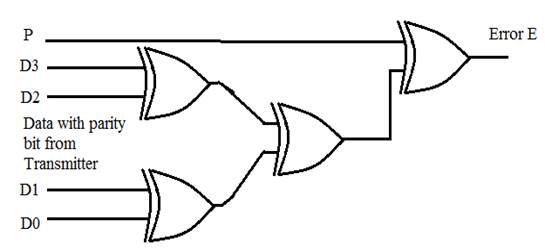

ii) P = 1 & D3 D2 D1 D0 = 1110
