XOR gate and its application in staircase light control
A four input XOR logic has inputs ABCD = 1011. The output of the XOR gate would be ___________.
___________gate can be used as parity generators and checkers.
Choose the correct output Y for the even parity generator for the data input D0D1D2D3 = 0000.

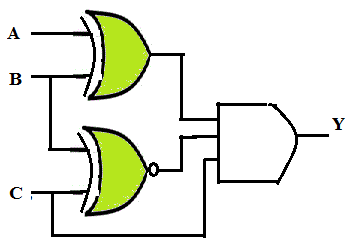

Determine the input conditions needed to produce Y = 1 for the circuit shown below.
A two input XNOR gate can be used to produce a high output when the two inputs match exactly. Select valid option.
