Majority circuit using basic logic gates
What is the output status of the majority circuit when the inputs A, B, C, D are 1011?
If IC 7432 and IC 7408 represent quad dual-input OR and AND circuits respectively, then _______number of IC7432 and ____________ number of IC 7408 respectively would be necessary for implementation?

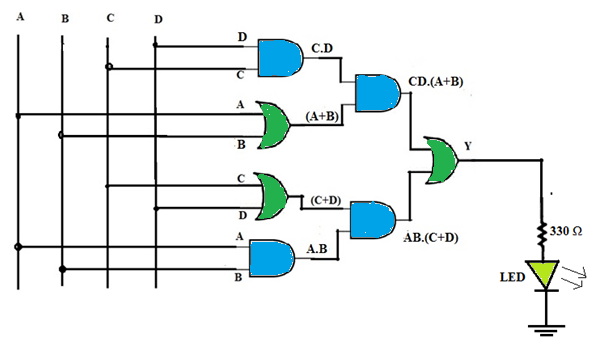

What would be the Boolean expression for output Y in figure below, if all OR gates are replaced by AND, and vice-versa?
If the majority circuit is defined as a logic circuit that generates a HIGH output when the majority of its inputs A, B, C and D are LOW, then which of the following Boolean expression defines this circuit?
The logic circuit that you simulated in figure below is called _____________ circuit.
