Electronic lock using basic logic gates

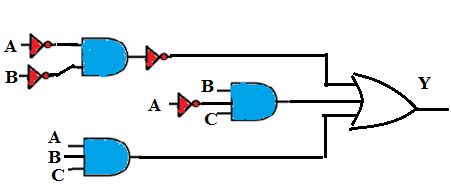

Answer the questions below by referring the diagram shown below:
For the application shown above, analyse and obtain the simplified algebraic expression for output Y.
If the OR gate in above figure is replaced by AND gate, then obtain the expression for output Y.
If the AND gates are replaced by OR and vice versa obtain the simplified expression for output Y.
Select the simplified logical expression for output Y if all NOT gates are removed.
The method of logic circuit simplification requires that the logic expression should be in sum-of-product form or product –of-sum form. Which of the following represents the SOP form?
