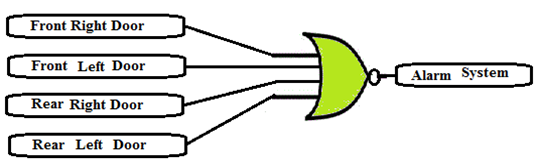

Consider the digital car- door- lock alarm system which sounds an alarm when receives a logic 1. The alarm will sound under what condition?{Assume: Door open = Logic 0}.

a: Front Right Door is open Explanation

Explanation

b: Front Left Door is open Explanation

Explanation

c: All four doors are open. Explanation

Explanation

d: All the above Explanation

Explanation

Refer the application shown below and solve the following questions. [Alarm sounds on receiving a logic HIGH.]

a: Alarm sounds when X = 1. Explanation

Explanation

b: Alarm sounds when X = 0 and A=B=C=D=0. Explanation

Explanation

c: Alarm sounds when X = 1 and A=B=0, C=D=1. Explanation

Explanation

d: All of the above conditions. Explanation

Explanation

Consider the circuit given below. Analyze the circuit and state the condition for which the output Y = 0.

a: A=B=1, C = 1 Explanation

Explanation

b: A=B=1, C = 0 Explanation

Explanation

c: A= B = 0, C = 1 Explanation

Explanation

d: A=B= X, C= 1 Explanation

Explanation

Simplify the following expression using DeMorgan's theorems: Y = [A(B+C')'D]'

a: Y = A' + B + C' +D Explanation

Explanation

b: Y = A' + B' + C' +D' Explanation

Explanation

c: Y = A' + B + C' +D' Explanation

Explanation

d: Y = A + B + C +D Explanation

Explanation

NOR gate is referred to as Universal gate because

a: NOT gate can be implemented using NOR gate. Explanation

Explanation

b: AND gate can be implemented using ONLY NOR gates. Explanation

Explanation

c: Any logic combinational circuit can be implemented using ONLY NOR gates. Explanation

Explanation

d: All of these. Explanation

Explanation
